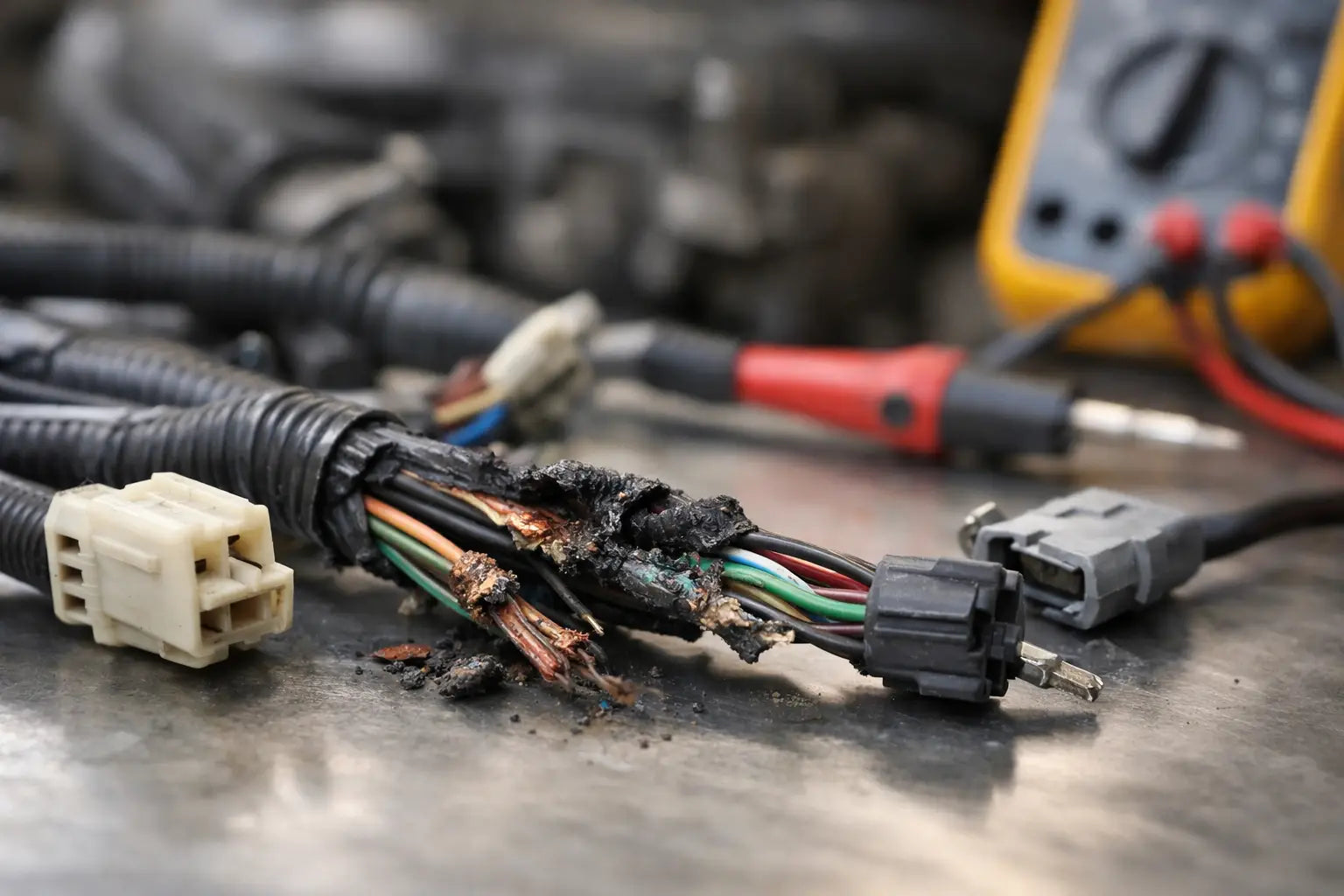

A wire harness may look like a simple collection of conductors, connectors, and protective coverings. In operating equipment, however, it is a critical system that carries power and signals through heat, vibration, moisture, movement, and electrical load. When it fails, the result can be intermittent faults, equipment downtime, warranty claims, safety concerns, and difficult field diagnostics.
So, why do wire harnesses fail? Rarely because of one obvious defect. Most failures begin with a mismatch between the harness design and its real operating conditions, then become visible only after installation or extended service. The most dependable assemblies are designed, built, and validated with the entire application in view.
Failure Often Starts Before Production
A harness can meet a drawing and still be poorly suited to the equipment it serves. A wire gauge may appear adequate on paper but run hot during peak load. A connector may fit correctly but lack the sealing or retention needed for a dirty, high-vibration installation. Routing may work in a static model but create a repeated bend point when a door, boom, or service panel moves.
This is why wire harness reliability is an engineering and manufacturing discipline, not simply an assembly task. Material selection, circuit protection, termination quality, branch layout, and installation constraints all affect service life. The right answer depends on the application, expected duty cycle, available space, regulatory requirements, and the consequences of failure.
Why Do Wire Harnesses Fail in Service?
1. Vibration loosens terminations and damages conductors
Vibration is among the most common causes of harness failure in industrial equipment, vehicles, agricultural machinery, and marine applications. Repeated movement can loosen connector interfaces, wear insulation against nearby components, and fatigue copper conductors near a terminal or strain-relief point.
The risk is highest where a harness enters a connector, passes through a bulkhead, or changes direction sharply. Proper clamping, strain relief, service loops where appropriate, and routing away from high-vibration components reduce movement before it becomes damage. The goal is not to make every section rigid. It is to control movement without creating a new stress concentration.
2. Incorrect wire size creates heat and voltage drop
Conductors that are undersized for the actual circuit load can overheat, especially during peak demand or long duty cycles. Excessive voltage drop can also cause motors, sensors, solenoids, and electronic controls to operate inconsistently even when no visible conductor damage is present.
Wire sizing must account for more than nominal current. Engineers should consider circuit length, ambient temperature, bundling density, insulation temperature rating, intermittent loads, startup current, and expected future changes to the equipment. A harness operating near its thermal limit may pass an initial test but have little margin for real-world conditions.
3. Poor crimp quality causes high resistance connections
A terminal crimp is a mechanical and electrical connection. If the crimp is too loose, too tight, improperly positioned, or made with the wrong tooling, it can produce elevated resistance, heat buildup, pullout, or intermittent operation.
Crimp quality depends on controlled tooling, correct terminal and wire combinations, calibrated processes, and inspection standards. Visual checks matter, but they are not enough by themselves. Pull-force testing, crimp-height verification, and process documentation provide greater confidence that a connection will remain dependable through production and service.
4. Moisture and contamination compromise connections
Water, condensation, salt spray, oil, chemicals, dust, and washdown exposure can enter connectors and damage conductors over time. Corrosion increases resistance and can eventually interrupt a circuit. In low-voltage signal circuits, even minor contamination can cause unreliable readings or communication faults.
The appropriate protection level depends on the environment. A sealed connector may be necessary for an exterior or washdown location, while an indoor enclosure may require a different balance of access, cost, and protection. Connector seals, cavity plugs, backshells, heat-shrink transitions, and carefully selected overmolds all have a role when the application demands them.
5. Abrasion cuts through insulation
Harnesses often fail where they contact sharp edges, frame members, fasteners, brackets, or moving assemblies. Over time, abrasion can wear through insulation and expose the conductor. That damage can lead to shorts, ground faults, blown fuses, or faults that appear only when equipment moves into a particular position.
Effective routing is the first defense. Protective sleeving, conduit, edge guards, grommets, clips, and properly placed clamps provide additional protection. These features should be selected as part of the harness design, not added after a field failure reveals a problem.
6. Excessive flexing fatigues the copper
Not every harness remains stationary. Assemblies used in hinged panels, articulated equipment, lift mechanisms, and moving machine components may bend thousands or millions of times. Standard stranded wire can eventually fatigue if it is repeatedly flexed beyond its intended capability.
For dynamic applications, the conductor construction, bend radius, routing path, and support method need deliberate attention. High-flex cable may cost more than conventional wire, but it can be the better value when replacement access is difficult or equipment downtime is expensive. A lower-cost material choice is not a savings if it shortens field life.
7. Connector selection does not match the application
A connector can be electrically compatible and still be a poor choice for the job. Insufficient current capacity, weak locking features, inadequate keying, unsuitable contact plating, limited mating cycles, or the wrong environmental rating can all create failure points.
Connector selection should reflect the conditions at the installed location, not just what is available in a catalog. Consider mating force, service access, expected vibration, exposure, circuit type, and the possibility of mis-mating during assembly or maintenance. Clear keying and labeling can prevent errors that are otherwise difficult to trace later.
8. Inconsistent assembly and incomplete testing allow defects through
Even a well-designed harness can fail when production controls are inconsistent. Mixed components, incorrect wire lengths, missed cavity plugs, improper terminal insertion, pinout errors, and damaged insulation can all enter an assembly if work instructions and verification steps are not controlled.
Continuity testing confirms that circuits connect as intended, but it does not reveal every concern. Depending on the product, a complete quality approach may include visual inspection, terminal position assurance, pull testing, dielectric or hipot testing, resistance checks, and documentation tied to the specific build. The required test plan should match the consequences of a failure in the finished equipment.
Preventing Wire Harness Failures Before They Reach the Field
The most effective time to prevent a harness failure is during product development, when changes to routing, connector selection, branch lengths, and protection methods are still manageable. A production-ready design should define the electrical requirements and the physical realities of installation.
Start by documenting the operating environment: temperature range, vibration source, moisture exposure, chemicals, movement, service access, and expected equipment life. Then evaluate each circuit for current, voltage drop, protection requirements, and signal sensitivity. This creates a basis for selecting conductors, terminals, connectors, coverings, and retention methods that fit the application rather than a generic specification.
Manufacturing input is equally valuable early in the process. A design that is difficult to fixture, inspect, or repeat consistently can introduce avoidable variation at scale. Clear drawings, connector views, pinout control, approved component lists, labeling requirements, and test criteria help turn an engineering concept into a repeatable assembly.
For prototypes, field feedback should inform the next revision. If installers struggle to reach a connector, if a branch is too short, or if a clamp location creates a pinch point, those observations are design data. Addressing them before full production reduces rework, protects schedules, and improves confidence in the finished equipment.
Build for the Conditions the Equipment Will Actually See
Wire harness reliability is earned through intentional design and disciplined execution. The assembly must tolerate the loads, motion, exposure, and service demands of the machine it supports, not merely pass a bench test.
For OEMs, the practical next step is to review the harness alongside the complete equipment installation. When engineering and manufacturing teams examine those details early, they can turn common failure points into durable, production-ready solutions.
