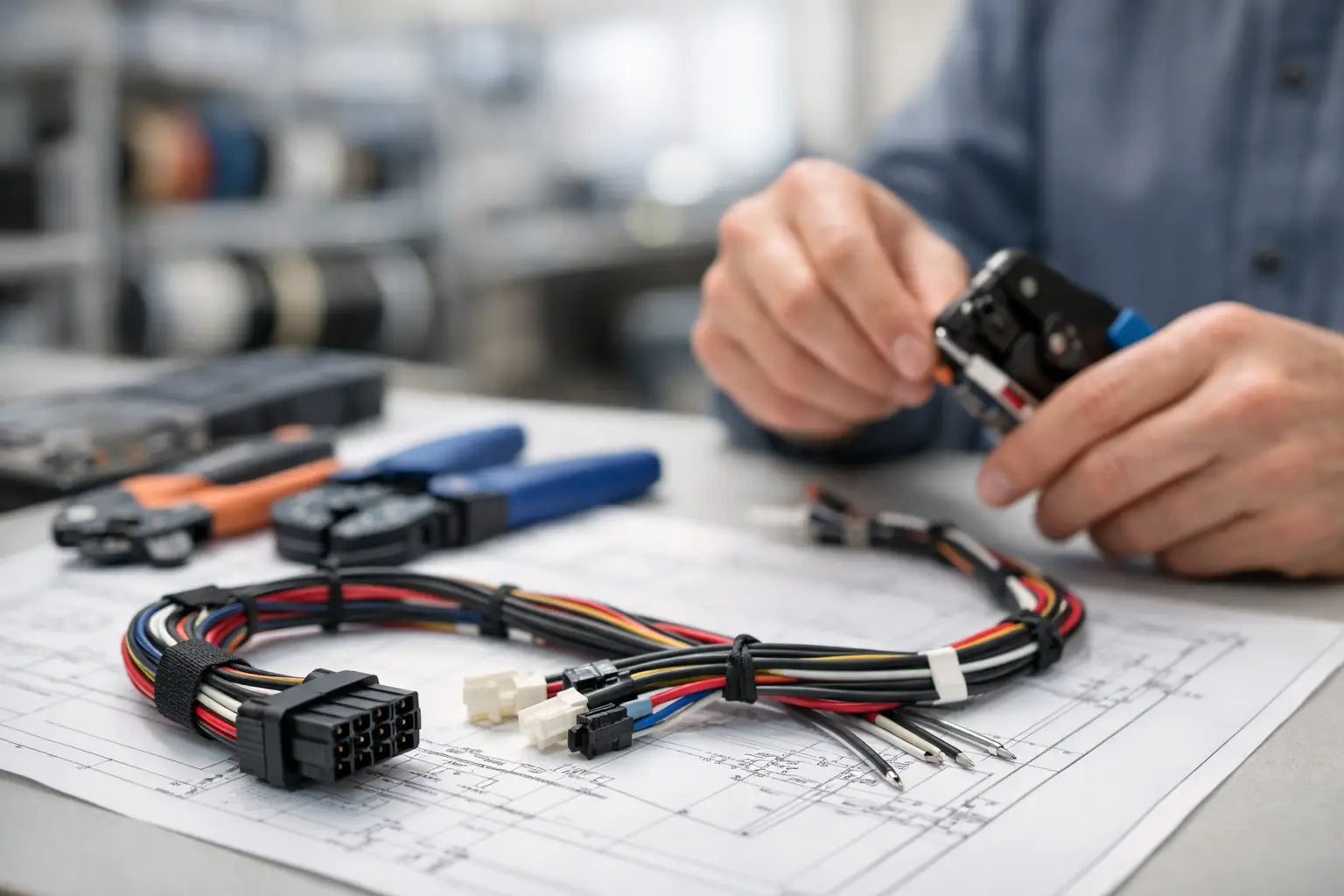

A wire harness that looks clean on a screen can still create production delays, rework, and field failures once it reaches the floor. That gap is exactly why design for manufacturability wire harness decisions matter early. For OEMs and equipment builders, the right design choices reduce friction from prototype through production and improve how the final product performs in the real world.
In wire harness manufacturing, design intent and production reality have to align. If a harness is difficult to build, route, label, test, or service, those issues rarely stay contained to the assembly itself. They affect lead times, labor consistency, installation speed, maintenance access, and overall product quality.
What design for manufacturability means in wire harnesses
Design for manufacturability in a wire harness context means engineering the assembly so it can be built accurately, repeatedly, and efficiently at production scale. That includes conductor selection, connector strategy, branch layout, shielding approach, labeling, test planning, and how the harness integrates into the larger system.
The goal is not simply to make the drawing complete. The goal is to make the harness practical to manufacture without compromising performance requirements. In some projects, that means simplifying a branch structure to improve repeatability. In others, it means changing materials or connector orientation to handle heat, vibration, moisture, or installation constraints.
A manufacturable harness balances three things at once: electrical performance, physical fit, and production discipline. If one of those is ignored, cost and quality usually suffer later.
Why design for manufacturability wire harness work pays off early
Most wire harness problems are less expensive to solve in design than after release. A connector that is difficult to access, a splice placed in the wrong location, or a bundle diameter that exceeds routing space can slow down both manufacturing and final installation. By the time those issues show up on the floor, timelines are tighter and options are fewer.
Early manufacturability review helps teams catch avoidable risk before it becomes scrap, delay, or engineering change activity. That matters for new product introduction, but it matters just as much when a product is moving from low-volume builds into repeat production.
For procurement and operations teams, this shows up as fewer surprises. For engineers, it means fewer late-stage revisions driven by assembly feedback. For OEMs, it supports a more stable path from prototype to scale.
The design choices that most affect manufacturability
Wire harness manufacturability is shaped by a series of small but connected decisions. No single factor determines success. The cumulative effect of those decisions is what drives build efficiency and consistency.
Connector selection and orientation
Connectors are often one of the first pressure points. A connector may meet the electrical spec, but still create problems if it is hard to terminate, prone to mis-mating, oversized for the enclosure, or poorly oriented for installation. Keying, locking style, terminal availability, and strain relief all influence assembly performance.
In many cases, standardizing connector families across a product line can reduce sourcing complexity and training time. The trade-off is that a standard part is not always the smallest or lowest-cost option for every location. The right choice depends on service conditions, volume, and the cost of assembly errors.
Wire type, gauge, and bundle construction
Conductor choice affects more than current capacity. It changes flexibility, routing behavior, bundle size, stripping consistency, and how the harness handles motion or abrasion. Overdesign can add unnecessary bulk and cost. Underdesign can create durability issues that surface after installation.
Bundle construction matters too. Tight branch points, inconsistent breakout lengths, or overfilled coverings make harnesses harder to assemble and install. A design that considers bend radius, clamp points, and real routing paths usually performs better than one built around a purely schematic view.
Splices, transitions, and breakouts
Splice locations can either support manufacturability or work against it. Poorly placed splices may create bulk in tight spaces, complicate wrapping, or reduce flexibility where the harness needs to move. The same is true for transitions between coverings, shielding sections, or branch breakouts.
These areas need to be designed for repeatable assembly. If a technician has to interpret ambiguous placement or work around cramped geometry, variation increases. That variation can affect both cosmetics and function.
Labeling and identification
Clear identification is often underestimated. Labels, wire markers, cavity callouts, and documentation all support faster assembly and easier inspection. They also make field service more efficient.
The best identification approach depends on the environment. A label that works well in a protected enclosure may not hold up in heat, chemicals, or outdoor exposure. Manufacturability is not just about applying the label easily. It is also about whether that identification remains useful over the life of the product.
Documentation is part of manufacturability
Even a well-designed harness can become difficult to produce if the documentation leaves too much open to interpretation. Manufacturing drawings, bills of materials, test requirements, and revision control all play a direct role in output quality.
Good documentation does not need to be excessive. It needs to be clear. Dimensions should reflect what matters on the board and in the final installation. Notes should define critical requirements without forcing unnecessary work. Part callouts should match approved materials and current sourcing realities.
This is where engineering and manufacturing collaboration matters most. A design package that looks complete in CAD may still miss practical instructions needed for repeatable production. Closing that gap early helps avoid tribal knowledge on the floor, which is rarely a scalable solution.
Prototype success does not always mean production readiness
A harness that works in a prototype build is not automatically ready for ongoing production. Prototype teams can compensate for unclear instructions, awkward build steps, or low-yield processes through experience and extra time. Production environments need consistency.
That is why design reviews should ask a different set of questions before release. Can the harness be built the same way every time? Are test points accessible? Are materials readily available? Does the design rely on manual judgment where a defined process would be better?
Sometimes the answer is to simplify. Sometimes it is to hold a more complex design because performance demands it. Design for manufacturability is not a push toward generic assemblies. It is a method for making intentional trade-offs with full awareness of production consequences.
Design for manufacturability wire harness planning improves quality
Quality in wire harnesses starts well before inspection. It starts with whether the design supports controlled assembly and practical testing. If operators are forced into inconsistent handling, if branch lengths are hard to verify, or if connectors are easy to misidentify, quality escapes become more likely.
A manufacturable design creates natural checkpoints. It supports repeatable cut and strip operations, clear terminal insertion, controlled torque or crimp processes, and efficient continuity and functional testing. Those factors reduce variation without adding unnecessary burden.
This is especially important in regulated or performance-sensitive industries, where traceability and reliability are tied closely to process discipline. In those environments, manufacturability and quality are not separate conversations.
What strong engineering-to-production partnership looks like
The best results usually come from involving manufacturing insight before the design is locked. That does not mean every project needs a lengthy redesign cycle. It means the harness should be reviewed by people who understand how it will actually be built, inspected, and scaled.
An effective partner looks at the full picture: system integration, environment, installation sequence, material availability, and long-term production needs. They can identify where a small design adjustment may improve labor efficiency, reduce handling damage, or simplify testing without changing product intent.
This is where a company like Design Technologies adds value. When engineering support and manufacturing execution work together, customers get more than a built-to-print supplier. They get a process that helps reduce production friction before it reaches the floor.
When to revisit the harness design
Manufacturability review is not only for new designs. It is also valuable when a product is experiencing recurring delays, rising assembly cost, installation issues, or field service complaints. Those symptoms often point back to design decisions that made sense in one phase but no longer fit current production realities.
A revision may involve standardizing components, adjusting branch geometry, improving identification, or updating documentation for better repeatability. The right move depends on the application, the volumes involved, and how costly current inefficiencies have become.
What matters is recognizing that harness performance is shaped by both design and execution. When those two are aligned, the result is more than a functional assembly. It is a production-ready component engineered for real-world demands.
The strongest wire harness programs are not built on drawings alone. They are built on intentional design choices that respect how the product will be manufactured, installed, and used over time.
