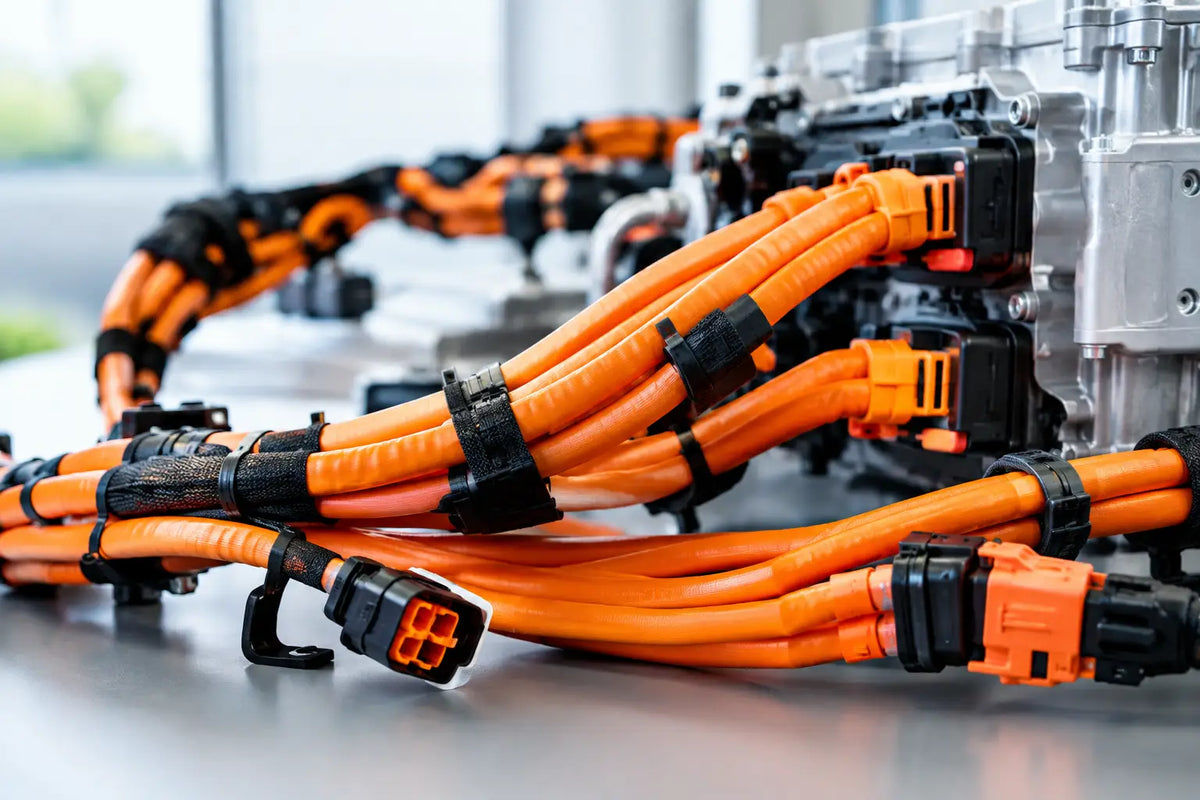

High voltage harnesses are not simply larger versions of standard electrical assemblies. They operate where insulation margins, routing decisions, termination quality, heat, vibration, and service access can directly affect equipment safety and uptime. For OEMs building electrified vehicles, industrial equipment, energy systems, marine products, or specialized machinery, the harness must be engineered as part of the system - not treated as a late-stage purchased component.
A reliable high-voltage assembly starts with a clear understanding of the electrical, mechanical, environmental, and production requirements it will face. That discipline helps prevent costly redesigns, field failures, and delays between prototype approval and full-scale manufacturing.
What Makes High Voltage Harnesses Different
Voltage level is only one part of the design challenge. As voltage and power increase, small weaknesses in material selection, termination geometry, spacing, shielding, or assembly control become more consequential. The goal is not merely to move power from one point to another. It is to do so predictably throughout the expected life of the equipment.
High-voltage harnesses commonly connect battery systems, inverters, motors, charging equipment, power distribution components, converters, and other critical electrical devices. Depending on the application, the assembly may need to manage high current, maintain isolation from low-voltage circuits, resist abrasion, limit electromagnetic interference, and remain serviceable in a confined installation space.
That creates a different set of questions than a typical low-voltage harness. What temperatures will the conductors and terminals see under sustained load? Will the harness be exposed to chemicals, moisture, salt spray, dust, or hydraulic fluids? How much vibration and movement will occur at connection points? What clearance and creepage requirements apply to the system? Can technicians safely inspect or replace the assembly when necessary?
The right answer depends on the product and its operating environment. A harness for a stationary industrial power unit will not face the same demands as one installed in agricultural equipment, an electric vehicle, or a marine application.
Design Decisions That Affect Performance
Intentional design starts before wire is cut. The most effective programs establish critical requirements early, when routing, connector selection, and component placement are still flexible. This approach reduces the risk of creating an assembly that works on a bench but becomes difficult to build, install, or service in production.
Conductor and insulation selection
Conductor sizing must account for continuous current, peak load, allowable voltage drop, ambient temperature, bundle conditions, and expected duty cycle. A wire that appears adequate in isolation can run hotter when placed in a tightly packed routing path or near other heat-generating components.
Insulation selection also deserves close attention. Temperature rating, flexibility, abrasion resistance, chemical compatibility, and voltage capability all matter. The best material choice is not always the highest-rated option. Over-specifying materials can increase cost and reduce flexibility, while under-specifying them can compromise field life. The design target should reflect the actual application rather than a generic assumption.
Connectors, terminations, and strain relief
Every connection is a potential reliability point. Connector families must be matched to the system voltage, current, sealing needs, mating cycle expectations, and installation constraints. Proper terminal crimp geometry, pull strength, insulation support, and retention are equally important.
Strain relief is often underestimated. If the harness is unsupported near a connector, vibration and handling loads can transfer directly to terminals and contact interfaces. Thoughtful breakout design, clamps, grommets, backshells, and service loops help protect the connection without making the assembly unnecessarily difficult to install.
Routing and mechanical protection
A well-designed route protects the harness from abrasion, pinch points, sharp edges, moving components, and excessive bend stress. It also makes assembly repeatable on the production floor. Routing that requires installers to force a stiff cable into position or interpret vague work instructions will create variation.
Protective coverings, conduit, braided sleeving, heat shrink, clips, and sealing features should be selected for their specific purpose. More protection is not automatically better. Added layers can increase diameter, weight, heat retention, cost, and assembly time. The practical objective is targeted protection where the environment and mechanical risk justify it.
Safety and Isolation Must Be Built In
High-voltage systems require a disciplined approach to separation and identification. Physical spacing from low-voltage circuits, clear routing paths, appropriate coverings, and connector systems designed for the intended voltage class all support safer integration and service.
Color coding and labeling can improve installation accuracy and maintenance response, but visual identification is only one layer of control. The assembly must also maintain the electrical isolation and mechanical integrity required by the complete system. This includes considering how the harness behaves after repeated thermal cycles, vibration exposure, connector mating, and normal service activity.
Shielding may be required when sensitive control circuits operate near high-power conductors. However, shielding should be designed around the actual electromagnetic environment and grounding strategy. A shield that is improperly terminated or added without regard for the system architecture can create new problems rather than resolve existing ones.
From Prototype to Production Without Losing Control
Many high-voltage projects begin with a prototype build, then move quickly toward pilot production or larger volumes. The transition can expose weaknesses that were not visible during early development. A prototype may be functional even if it requires manual fitting, specialized knowledge, or inconsistent assembly steps. Those conditions do not translate well to repeatable production.
Design for manufacturability closes that gap. It considers practical details such as cut length tolerances, component availability, crimp tooling, routing sequence, inspection access, labeling, packaging, and installation ergonomics. These factors influence cost and lead time, but they also determine whether every unit can be built to the same standard.
At Design Technologies, engineering support and manufacturing execution are approached as connected responsibilities. Early collaboration allows potential production issues to be identified while changes are still manageable. That can include reviewing drawings and bills of material, identifying difficult routing paths, evaluating alternate components, and establishing clear build documentation before the program reaches volume.
Verification Should Reflect Actual Use
Testing and inspection plans should align with the assembly's risk profile and the customer's specifications. Continuity testing can confirm correct circuit paths, while insulation and dielectric testing may be appropriate where isolation performance must be verified. Visual inspection, terminal retention checks, dimensional verification, and connector engagement checks also help confirm that the physical build matches the intended design.
The key is to avoid relying on a single inspection step to catch every issue. Quality is stronger when it is built into the process through controlled work instructions, trained assembly personnel, suitable tooling, traceable materials, and checkpoints at critical stages.
For demanding applications, validation may extend beyond routine production testing. Thermal cycling, vibration exposure, environmental conditioning, and fit checks in the final equipment can reveal design issues that electrical testing alone cannot. The appropriate level of validation depends on the product's operating conditions, failure consequences, and applicable customer or industry requirements.
Choosing a Manufacturing Partner for High-Voltage Work
A supplier should be able to do more than quote a cable assembly from a drawing. High-voltage programs benefit from a partner that can ask practical engineering questions, identify manufacturability concerns, and maintain process discipline as volumes change.
Look for a manufacturer that understands the relationship between design intent and shop-floor execution. That includes controlled crimping and termination practices, accurate labeling, repeatable routing, documented inspections, material management, and the ability to support both early builds and ongoing production. Communication matters as much as capability. If a design detail is unclear or a component creates a production risk, the right partner raises the issue early with a workable path forward.
High-voltage assemblies are a critical connection between power-system design and real-world equipment performance. Treating them with the same engineering attention given to batteries, motors, controls, and enclosures creates a stronger finished product. When the next program reaches the harness design stage, bring manufacturing expertise into the conversation early enough to shape the outcome.
