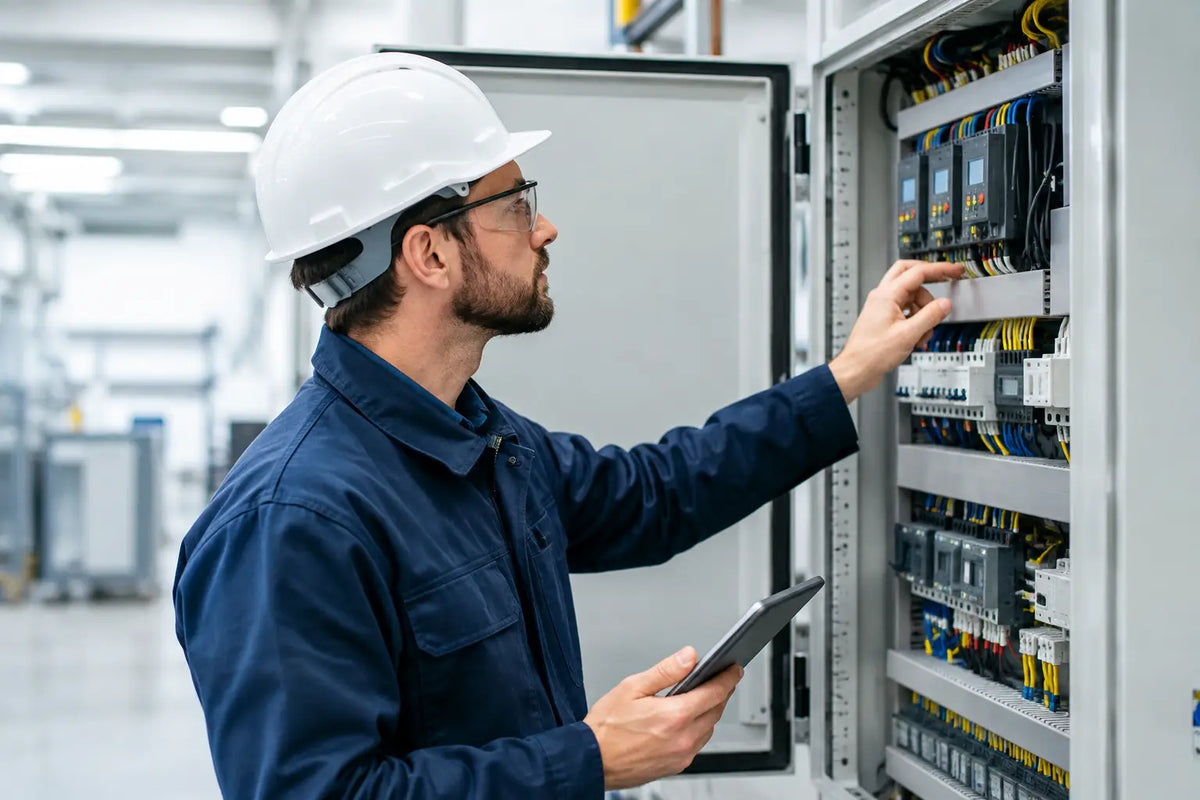

A control panel can be electrically sound, built to a detailed print, and ready for installation - then get stopped at the jobsite because the inspector cannot verify that it meets the applicable requirements. That is why OEMs and equipment builders ask, when is UL 508A required? The short answer is that UL 508A is commonly required when an industrial control panel must carry a recognized third-party listing to satisfy the authority having jurisdiction, a customer specification, an end-user standard, or a project contract.
The longer answer matters because not every panel has the same installation environment, risk profile, or approval path. A practical compliance strategy starts before component selection and continues through labeling, documentation, wiring, and final inspection.
What UL 508A Covers
UL 508A is the safety standard used to evaluate industrial control panels. It addresses the construction of panels that control industrial machinery, process equipment, HVAC systems, pumps, conveyors, and similar equipment. The standard covers items such as enclosure selection, spacing and wire routing, overcurrent protection, component suitability, grounding, short-circuit current rating, markings, and documentation.
A panel evaluated and labeled under UL 508A is not simply a box containing UL Recognized components. The completed assembly must be built and documented as a system. That distinction is central to avoiding costly assumptions during design and production.
UL 508A generally applies to industrial control panels intended for ordinary locations and typically rated 600 volts or less. It does not replace product-specific standards for every type of equipment. For example, a medical device, hazardous-location assembly, or complete piece of machinery may have additional requirements that go beyond the panel itself.
When Is UL 508A Required?
UL 508A is required when the party with authority over the installation requires a listed industrial control panel. In many cases, that party is the local authority having jurisdiction, often called the AHJ. Depending on the project, it may also be an electrical inspector, a customer engineering group, an insurer, a facility owner, or a general contractor enforcing project specifications.
The National Electrical Code includes requirements for industrial control panels, including provisions related to listing and field evaluation. Local jurisdictions adopt and enforce electrical codes differently, so the exact expectation can vary by location. An AHJ may accept a field evaluation for a one-off panel, but require a UL 508A-listed panel for repeated installations or production equipment. A major manufacturer may make a UL label mandatory across all incoming equipment, regardless of the local jurisdiction.
In practical terms, plan for UL 508A when any of the following conditions applies:
- The project specifications call for a UL 508A-listed industrial control panel.
- The equipment will be installed in a jurisdiction where the AHJ expects listed panels.
- An end user has corporate safety, insurance, or plant-standard requirements for UL labeling.
- The panel will be shipped with production equipment to multiple states or jurisdictions.
- The machine builder needs a repeatable approval path rather than case-by-case field inspection.
UL Components Alone Do Not Make a UL 508A Panel
A common misconception is that a panel qualifies because its breakers, contactors, power supplies, terminal blocks, and wire are individually recognized or listed. Component selection is only one part of the evaluation.
UL 508A considers how those components are applied together. A properly rated breaker may still be unsuitable in the final panel if its interrupting rating, protective device relationship, wire sizing, or available fault current does not support the application. Likewise, an enclosure may be appropriate for the environment but still need proper bonding, markings, and component spacing to support a compliant panel build.
The panel's short-circuit current rating, or SCCR, is a frequent point of failure. The SCCR identifies the maximum available fault current the panel can safely withstand under specified conditions. It must be determined using approved methods and marked on the panel. If the facility's available fault current exceeds the panel's marked SCCR, the installation may not be accepted.
For OEMs, this is where intentional design pays off. Addressing SCCR, disconnecting means, branch-circuit protection, wire ratings, and enclosure requirements during engineering is far more efficient than trying to correct them after fabrication.
Listing, Recognition, and Field Evaluation Are Different Paths
The terminology can be confusing, especially when several parties use the word “UL” to mean different things. A UL Recognized component has been evaluated for use within a larger product or assembly. A UL Listed product has been evaluated for its intended end use. A UL 508A panel shop can apply a UL label to qualifying industrial control panels built under its authorized procedures.
A field evaluation is different. It is an inspection of a specific, already-built product or installation, usually performed at the request of an AHJ. It can be useful for prototypes, legacy equipment, or unique one-time installations. However, it is often less predictable and can add schedule pressure when findings require changes in the field.
For equipment that will be manufactured repeatedly, a UL 508A production path is usually the more controlled option. It supports consistent construction, documented ratings, and a clearer path for equipment acceptance. For a truly singular build, a field evaluation may be more appropriate. The right choice depends on production volume, installation location, schedule, and the customer's acceptance requirements.
Start the Compliance Discussion Before the Panel Is Designed
The most effective time to determine whether UL 508A is needed is at project kickoff. Ask where the equipment will be installed, who will inspect it, whether the customer has a written panel specification, and whether the panel will be replicated across multiple sites. Confirm the required enclosure type, supply voltage, environmental conditions, and available fault current whenever possible.
These answers shape engineering decisions. A panel intended for a clean indoor manufacturing floor has different requirements than one mounted outdoors, exposed to washdown, or integrated into agricultural equipment. If the system includes variable frequency drives, heating loads, safety circuits, or multiple voltage levels, those details should be resolved early as well.
The documentation package deserves the same attention as the physical panel. A complete build should align schematics, bills of materials, panel layout, wire identification, ratings, warning labels, and revision controls. Documentation is not administrative overhead. It is how a panel builder, OEM, inspector, and maintenance team verify that the finished equipment matches the intended design.
Design Choices That Affect Approval and Production
Compliance and manufacturability should work together. A panel designed only to satisfy a theoretical requirement can become difficult to wire, troubleshoot, service, or scale. Conversely, a panel optimized only for fast assembly can create spacing, heat, or rating problems that surface during review.
A disciplined engineering-to-production process considers both. It uses suitable components, applies clear wire and terminal identification, maintains adequate room for routing and service, and establishes repeatable assembly instructions. It also accounts for supply-chain realities. If a specified component becomes unavailable, an alternate part must be evaluated in the context of the entire panel, not swapped solely because its basic electrical ratings look similar.
For prototype equipment, it is tempting to defer these decisions until the production release. That can be reasonable if the prototype is strictly for internal testing. But if the prototype will be installed at a customer site, demonstrated in a plant, or converted directly into production hardware, designing with the approval path in mind prevents a second round of avoidable engineering.
A Practical Approach for OEMs and Equipment Builders
The question is not whether every control panel needs the same label. The question is whether the panel will be accepted, safe for its intended installation, and repeatable at the required production scale.
Before releasing a panel for fabrication, establish the approval requirement in writing. Confirm whether the customer or AHJ expects UL 508A, another nationally recognized testing laboratory listing, or a field evaluation. Then build the compliance requirements into the design package rather than treating them as a final inspection item.
For equipment makers, a manufacturing partner that understands both control-panel construction and production discipline can reduce friction between design intent and finished equipment. At Design Technologies, that means approaching panel work as an engineered assembly: built to the required specifications, documented for consistency, and prepared for real-world operating demands.
The best time to solve a UL 508A question is before the enclosure is cut, the components are ordered, and the installation date is on the calendar.
