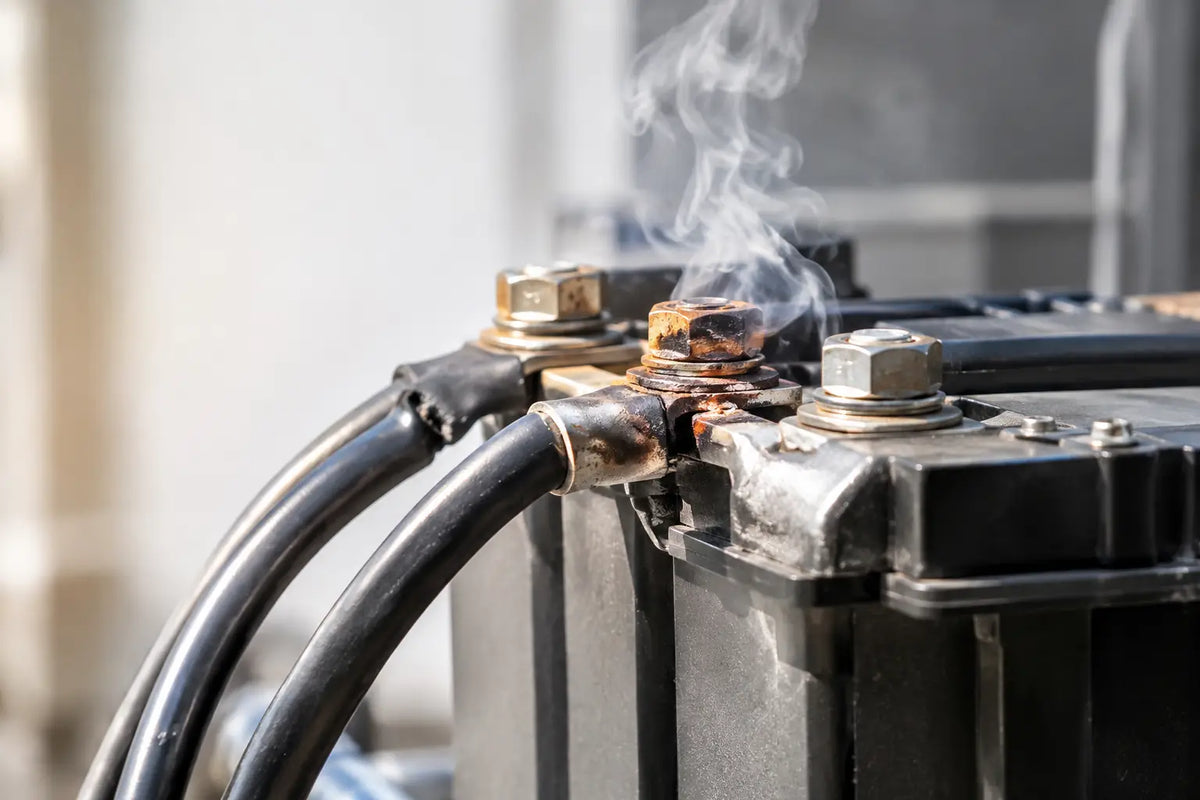

A terminal that is too hot to touch is not a minor maintenance finding. It is evidence that electrical energy is being lost as heat at a connection point, often long before a fuse opens or a system stops working. Understanding what causes terminal overheating helps equipment manufacturers prevent field failures, protect sensitive components, and build assemblies that hold up under real operating loads.
Terminal overheating is usually a connection problem, but the underlying cause may begin with design assumptions, component selection, installation practices, or the operating environment. The visible discoloration or melted insulation is often the final symptom, not the root cause.
What Causes Terminal Overheating?
At its most basic, overheating occurs when resistance at a terminal is higher than the connection was designed to handle. Current moving through that resistance creates heat. The relationship is unforgiving: heat rises with the square of current. A modest increase in resistance can therefore become a serious thermal problem when a circuit operates near its rated load.
A sound terminal connection provides a large, stable contact area between conductive surfaces. A poor connection limits that contact area, concentrates current through smaller points, and generates heat. As the terminal heats, oxidation, material relaxation, and insulation damage can make the connection worse. That creates a failure cycle that can accelerate quickly.
The most common causes are loose terminations, incorrect terminal or conductor sizing, poor crimp quality, oxidation or contamination, excessive circuit load, vibration, and unsuitable materials for the environment. More than one cause is often present. For example, an undersized terminal may run acceptably in a controlled test, then fail after vibration reduces contact pressure in a hot, wet application.
Loose Connections Create High Resistance
Loose screws, nuts, set screws, and spade connections are frequent sources of terminal heat. A connection can become loose because it was not tightened to the specified torque, because a fastener was tightened beyond its range and damaged the hardware, or because repeated thermal cycling caused materials to expand and contract over time.
Terminal blocks and power distribution points are particularly sensitive to torque control. Too little clamping force leaves inadequate contact pressure. Too much can deform strands, crack a terminal body, strip threads, or damage a conductor. The correct torque is not a general rule of thumb. It depends on the terminal design, conductor size, material, plating, and hardware specified by the component manufacturer.
Vibration introduces another concern. Equipment used in agriculture, marine environments, mobile machinery, transportation, and industrial processing can experience constant motion. If the terminal system was not selected and secured for that environment, vibration can gradually reduce contact integrity even when the original installation was correct.
Incorrect Wire and Terminal Selection
A terminal and wire must be matched to the actual electrical and mechanical demands of the circuit. Selecting parts only by nominal wire gauge is not enough. The assembly must account for conductor strand count, insulation diameter, current level, ambient temperature, bundling, duty cycle, and the termination method.
An undersized conductor has greater resistance and may heat along its length. An undersized terminal may have insufficient conductive cross-section or contact area at the connection. Both conditions can raise temperature at the termination, especially when the circuit carries continuous current or operates in a high-temperature enclosure.
Oversizing is not automatically safer. A terminal designed for a larger wire may not grip a smaller conductor correctly. The result can be a crimp that looks acceptable but lacks the compression needed for low resistance and reliable pullout strength. Intentional component selection means choosing a validated wire-terminal combination, not forcing a near match to work.
Temperature ratings also deserve close attention. A conductor’s ampacity can change based on insulation rating, enclosure temperature, nearby heat sources, and bundle density. A wire that appears adequately rated on a schematic may be inadequate once installed beside drives, engines, heaters, or tightly packed power conductors.
Poor Crimping Damages the Electrical Path
Crimped terminals are dependable when the terminal, wire, tooling, and process are designed to work together. They become a source of resistance when any part of that system is uncontrolled.
An under-crimp may not create enough metal-to-metal compression between the terminal barrel and conductor strands. An over-crimp can cut strands, fracture the barrel, or damage plating. Incorrect crimp dies, worn tooling, improperly stripped insulation, inconsistent strip length, and mixed terminal families can all compromise the result.
The quality issue is not always visible. A terminal can pass a quick visual check while retaining voids, damaged strands, or insufficient compression within the barrel. Those hidden defects increase resistance and reduce the connection’s ability to withstand vibration and thermal cycling.
For production assemblies, validated crimp specifications, calibrated tooling, first-article verification, and pull-force testing provide meaningful process control. For critical applications, cross-section analysis can confirm that the crimp geometry produces the intended compression and strand distribution. This level of discipline is especially valuable when a product must perform consistently across hundreds or thousands of units.
Corrosion and Contamination Increase Resistance
Oxidation, moisture, salt exposure, chemicals, dust, and process residue can interfere with a terminal’s conductive contact surfaces. Corrosion does not need to be dramatic to cause a problem. A thin oxide layer at a high-current connection can raise resistance enough to create damaging heat.
Marine equipment, outdoor controls, agricultural machinery, washdown areas, and HVAC installations all require close attention to environmental sealing and material compatibility. A terminal that performs well inside a protected enclosure may not be suitable for an exposed location with condensation, road salt, fertilizer, or chemical vapor.
Dissimilar metals can also create galvanic corrosion when moisture is present. Terminal plating, conductor material, busbar material, and fastener selection should be considered as a system. The right seal, plating, heat-shrink, connector housing, or enclosure strategy depends on the application. Over-sealing can trap moisture if the overall design does not provide proper drainage or pressure management, so the answer is not always simply adding more protection.
Circuit Overload and Heat From Nearby Components
Sometimes the connection is correctly built, but the circuit is carrying more current than intended. Added accessories, changed motor loads, blocked airflow, incorrect overcurrent protection, or revised operating cycles can push a terminal beyond its thermal limit.
This is why terminal overheating should be evaluated in context. Measure current under actual operating conditions, including startup, peak load, and prolonged duty cycles. Compare those readings with the ratings of the wire, terminal, connector, fuse, breaker, and connected equipment. A terminal may overheat only after an hour of operation, only during a high-load cycle, or only when ambient temperatures are elevated.
External heat can be mistaken for self-heating. A terminal located near an engine, transformer, drive, exhaust path, or high-power resistor may exceed its rating even with a low-resistance connection. Thermal imaging can help distinguish a localized hot connection from a broader enclosure-temperature issue. The most useful inspection compares similar terminals carrying similar loads rather than looking at one temperature reading in isolation.
How to Diagnose an Overheating Terminal
The first priority is safety. De-energize equipment before physical inspection unless qualified personnel are following documented energized-work procedures. Look for discolored metal, darkened insulation, melted housings, brittle wire jackets, odor, loose hardware, and signs of corrosion. These conditions indicate that the connection should not simply be tightened and returned to service without understanding why it heated.
A disciplined diagnosis combines visual inspection with electrical and mechanical verification. Confirm conductor and terminal part numbers, inspect crimp geometry, check torque against the manufacturer’s specification, and measure voltage drop across the connection while the circuit is operating. An excessive voltage drop points to unwanted resistance. Current measurements and thermal imaging then help establish whether the connection, circuit load, or surrounding environment is driving the temperature rise.
Replacing only the visibly damaged terminal can leave the real issue in place. If one connection overheated because of a tooling setting, an overloaded circuit, or vibration-driven loosening, adjacent connections and similar units may face the same risk. Root-cause review should extend to the assembly process and application conditions, not just the failed part.
Preventing Terminal Overheating Through Design and Production Control
Prevention begins before the first wire is cut. Electrical design should define realistic current requirements, temperature exposure, conductor routing, terminal ratings, environmental protection, and service expectations. Production documentation should then translate those requirements into repeatable material selections, strip lengths, crimp parameters, torque values, inspection points, and test methods.
For equipment makers, the trade-off is usually between a lower initial component cost and a connection system with the margin needed for real-world duty. The lowest-cost terminal may be adequate for a low-current indoor application. It may not be appropriate for a high-vibration machine, a hot engine compartment, or a sealed enclosure with limited heat dissipation. Designing for the actual environment reduces warranty exposure, service interruptions, and rework later in production.
A capable engineering and manufacturing partner can help align the harness, cable assembly, control panel, and box build around the same operating conditions. At Design Technologies, that design-led approach supports assemblies built for production consistency as well as field durability.
When a terminal shows heat damage, treat it as useful evidence. A careful review of connection resistance, load, materials, environment, and assembly controls can turn one failure into a stronger specification for every unit that follows.
