A harness can meet every electrical requirement on the bench and still fail early in the field because one section of cable repeatedly contacts a frame edge, clamp, moving linkage, or neighboring component. Effective cable abrasion protection addresses that real-world contact before insulation wears through, conductors are exposed, or intermittent faults interrupt equipment operation.
For equipment makers, abrasion is rarely an isolated materials issue. It is a design, routing, assembly, and production-control issue. The right protection method depends on where the harness runs, how the equipment moves, what it contacts, and how it will be serviced. A practical solution must protect the cable without creating new problems such as restricted bend radius, trapped moisture, added weight, or difficult installation.
Why cable abrasion protection deserves early design attention
Abrasion develops when a cable or harness rubs against another surface over time. Vibration can cause movement that is nearly invisible during a short inspection but significant over hundreds or thousands of operating hours. The risk increases near sheet-metal edges, cast components, fasteners, cable clamps, engine compartments, articulated joints, and locations exposed to debris.
The visible damage often starts with scuffed jacket material. If that contact continues, insulation can thin or split. From there, the outcome may be a short circuit, loss of signal integrity, moisture entry, equipment downtime, or a safety concern. In regulated or performance-sensitive applications, even a minor harness failure can trigger difficult diagnostics, field service costs, and damage to customer confidence.
Addressing protection during the prototype stage is usually far less expensive than correcting it after production begins. It gives engineering teams room to refine routing, choose appropriate materials, verify clearances, and build repeatable assembly instructions. It also helps procurement and operations teams avoid late changes that disrupt component availability or production timing.
Start with the source of abrasion
Selecting a sleeve or conduit before understanding the contact condition can lead to overbuilt or underperforming harnesses. The first question is not simply, “What protection should be added?” It is, “What is causing the cable to move or wear?”
A stationary cable passing through a panel opening needs a different approach than a harness mounted on vibrating industrial equipment. A cable bundle routed near a sharp bracket needs a different solution than a cable in a flexible boom or steering assembly. Consider the type of contact, expected movement, vibration level, temperature, fluid exposure, and service access together.
Routing should be evaluated with the equipment in its actual operating positions, not only in a static CAD view. Suspension travel, pivot motion, enclosure doors, operator adjustments, and thermal expansion can all change clearances. A harness that appears properly supported at rest may contact an edge once the machine is loaded or in motion.
Match protection materials to the environment
Cable abrasion protection is not one product category. Material selection should follow the operating environment and the specific failure mode being controlled.

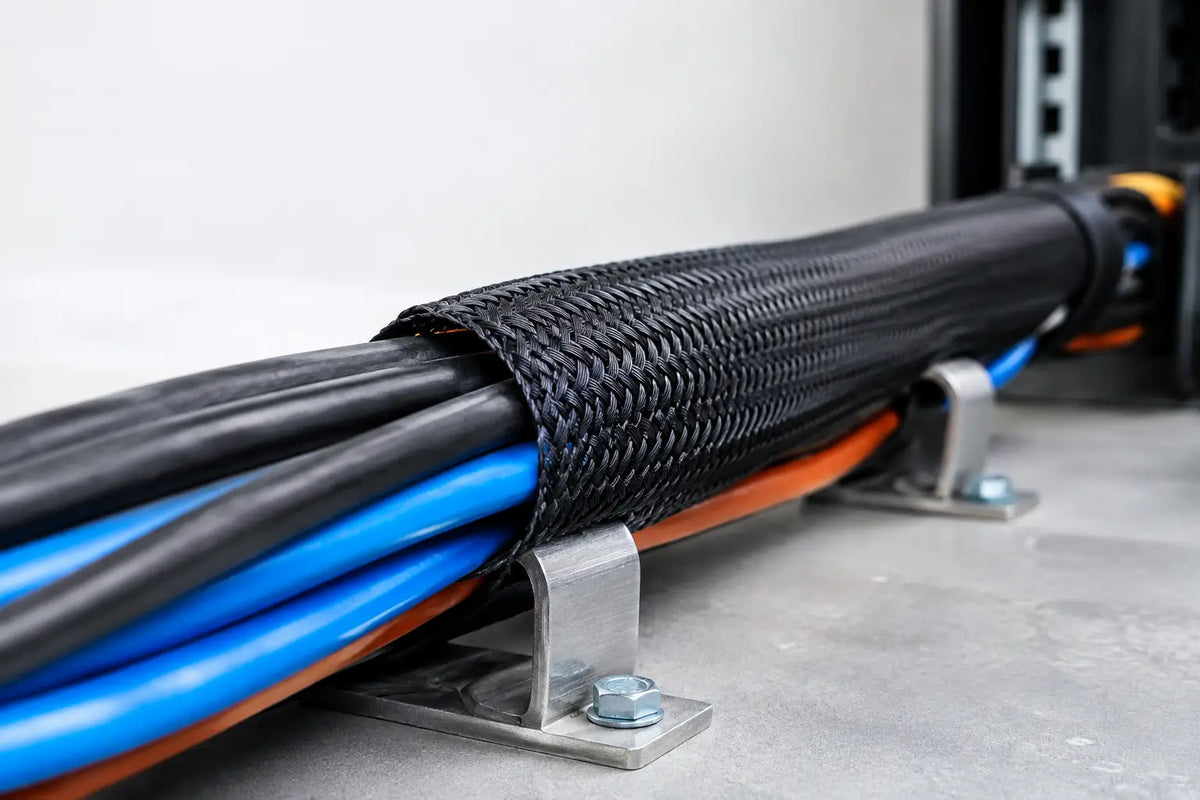

Braided sleeving is often a practical choice for bundled wires that need flexibility and broad surface coverage. It can conform to irregular harness shapes and can be expanded for installation over connectors in some configurations. However, the selected braid must be appropriate for the expected abrasion level, temperature range, and exposure to chemicals or UV light.
Split loom and corrugated conduit provide more defined mechanical coverage and can work well where harnesses need a durable outer layer or easier service access. They are commonly used in mobile equipment and automotive-style applications. The trade-off is added bulk and less flexibility, particularly in tight routing paths or moving sections.
Protective tapes can be useful for localized wear points, branch transitions, and harness bundling. They may also help reduce noise from harness movement against adjacent components. Tape alone is not always sufficient at sharp edges or high-motion locations, and its long-term adhesion must be considered in hot, wet, oily, or contaminated environments.
Grommets, edge trim, and pass-through bushings protect cables where they cross cutouts or panel edges. In these locations, protecting the opening can be more effective than adding coverage to the entire harness. The part must fit the panel thickness and opening geometry correctly. A poorly fitted grommet can shift, create a pinch point, or leave the edge partially exposed.
For severe mechanical exposure, a combination of methods may be necessary. A harness may use abrasion-resistant sleeving along its run, edge protection at a bulkhead opening, and properly spaced clamps to prevent movement. This layered approach is often more efficient than specifying an overly heavy protective material across the entire assembly.
Do not protect the cable and ignore the support system
Abrasion protection performs best when the harness is restrained correctly. If a cable can move excessively, even a durable outer covering will eventually wear. Clamps, ties, mounts, and strain-relief points should hold the harness securely without crushing it or concentrating load at a single location.
Support spacing depends on harness weight, orientation, vibration, and movement. Long unsupported spans are vulnerable to chafing and fatigue. At the same time, over-constraining a harness can transfer stress into conductors, connector backshells, or termination points. The goal is controlled movement, not zero movement in every area.
Bend radius is equally important. Protective conduit and sleeving can make a harness stiffer, especially in cold conditions or around larger bundle diameters. If the completed assembly is forced around too tight a bend, the protection can create strain rather than prevent it. Design reviews should assess the finished harness dimensions, not just individual wire specifications.
Build abrasion resistance into the harness design
The strongest results come from making cable protection part of the harness definition. Drawings and build documentation should identify routing paths, protected sections, clamp locations, breakout points, and required clearances. Generic notes such as “protect as needed” leave too much interpretation to the production floor and can produce inconsistent results from one build to the next.
A production-ready design also calls out where protection begins and ends. Terminating sleeving too far from a branch or connector may leave a high-wear section exposed. Extending it too far can interfere with connector serviceability or make a harness difficult to install. These details matter because field failures often occur at transitions, not across the center of a protected run.
Design Technologies approaches these decisions as part of the electrical assembly, not as an afterthought added once wires are cut. Engineering support and manufacturing execution should work from the same intent: a harness that fits the equipment, withstands its environment, and can be built consistently at production volume.
Verify the design before the field does
Visual inspection is necessary but does not fully validate abrasion performance. The harness should be checked in the installed position, with covers closed, moving components cycled, and expected vibration or load conditions considered. Look for contact points, pinch risks, unsupported spans, and areas where protection has shifted during installation.
For higher-risk applications, validation may include vibration testing, flex testing, temperature exposure, fluid compatibility checks, or installation trials on representative equipment. The appropriate test plan depends on the application. A stationary HVAC control panel will not require the same verification as agricultural, marine, automotive, or mobile industrial equipment.
Inspection criteria should be clear enough for both prototype and production teams to use. Confirm that clamps are seated, grommets are fully engaged, sleeving is correctly positioned, and cables maintain required clearance from sharp or moving features. When a design change is made, revisit the protection plan. A revised bracket, larger connector, or altered routing path can introduce a new wear point.
Avoid common protection mistakes
A few recurring mistakes account for many preventable cable failures. Using a heavier material everywhere can increase cost and installation time without protecting the actual source of wear. Conversely, relying on tape or a light sleeve at a sharp edge can create a false sense of security.
Another common issue is treating cable protection as independent from serviceability. A technician may need to access a connector, inspect a splice, or replace a section of harness without removing multiple layers of material. The best design balances protection with practical maintenance, especially for equipment expected to remain in service for years.
Finally, consistency matters as much as material selection. Two harnesses built to different interpretations of a general instruction may perform differently in the same application. Defined materials, cut lengths, locations, and inspection requirements turn design intent into repeatable production quality.
The most useful question during a harness review is simple: where will this assembly move, touch, and wear over its service life? Answer that question early, then design the routing, support, and protection around it. That discipline helps turn a cable assembly from a functional connection into a dependable part of the equipment.
